Description

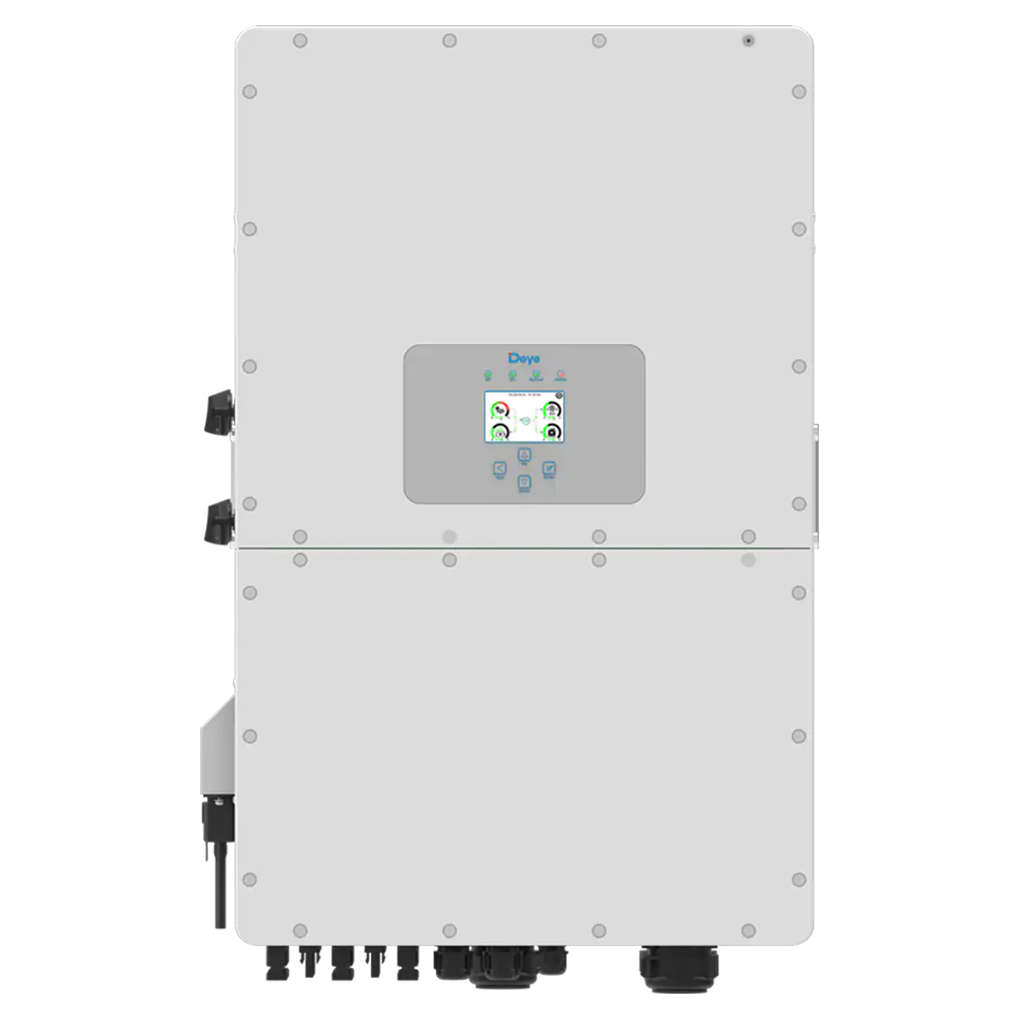

The 30KW Deye Inverter is a powerful three-phase hybrid inverter built for demanding energy systems.
It supports both lithium and lead-acid batteries, ensuring wide system compatibility.
Moreover, this inverter is designed for large residential, commercial, and industrial solar installations.
As a result, it delivers stable power output even under heavy electrical loads.
With advanced battery communication and smart energy management, performance remains highly efficient.
Therefore, users enjoy reliable power with improved system safety.
The 30KW Deye Inverter supports on-grid and off-grid operations seamlessly.
Additionally, it allows up to ten units to operate in parallel.
This feature makes system expansion easier and more flexible.
Consequently, it is ideal for scalable energy projects.
Why Choose the 30KW Deye Inverter
This inverter delivers high PV input capacity for maximum solar utilization.
Furthermore, it supports a wide voltage range for battery systems.
It features intelligent lithium battery charging with automatic BMS adaptation.
Therefore, battery lifespan and safety are significantly improved.
Peak power capability supports heavy startup loads effortlessly.
As a result, sensitive and high-power equipment operate smoothly.
Moreover, full communication options allow remote monitoring and control.
This ensures easier maintenance and real-time system insights.
Key Benefits
-
Supports lithium and lead-acid batteries seamlessly
-
Handles high solar input power efficiently
-
Delivers stable three-phase output
-
Enables parallel expansion up to ten units
-
Provides smart monitoring and remote access
-
Designed for harsh outdoor environments with IP65 protection
Technical Specifications
| Specification | Details |
|---|---|
| Model | SUN-30K-SG01HP3-EU |
| Product Name | 30KW Deye Inverter |
| Battery Type | Lithium / Lead Acid |
| Battery Voltage Range | 160V – 800V |
| Max DC Charging Current | 50A + 50A |
| Max DC Discharging Current | 50A + 50A |
| Battery Charging Strategy | Self-Adaption to BMS |
| Max PV Access Power | 60,000W |
| Max PV Input Power | 48,000W |
| Max PV Input Voltage | 1000V |
| Start-up Voltage | 180V |
| MPPT Voltage Range | 150V – 850V |
| Number of MPPTs | 3 (2+2+2) |
| Max PV Input Current | 36A + 36A + 36A |
| Max Short-Circuit Current | 55A + 55A + 55A |
| Output Voltage | 220V/380V, 230V/400V |
| Output Phase | Three Phase |
| Peak Power | 2× Rated Power for 10 seconds |
| Unbalanced Output | 100% |
| Communication Ports | RS485 / RS232 / CAN |
| Monitoring Options | GPRS / WiFi / Bluetooth / 4G / LAN |
| Parallel Operation | Up to 10 Units |
| Protection Rating | IP65 |
| Warranty | 5 Years |
Ideal Applications
This inverter is suitable for commercial buildings and industrial facilities.
It also works perfectly for large residential solar systems.
Moreover, it supports hybrid, on-grid, and off-grid energy solutions.
Therefore, energy independence becomes achievable and reliable.
