Description

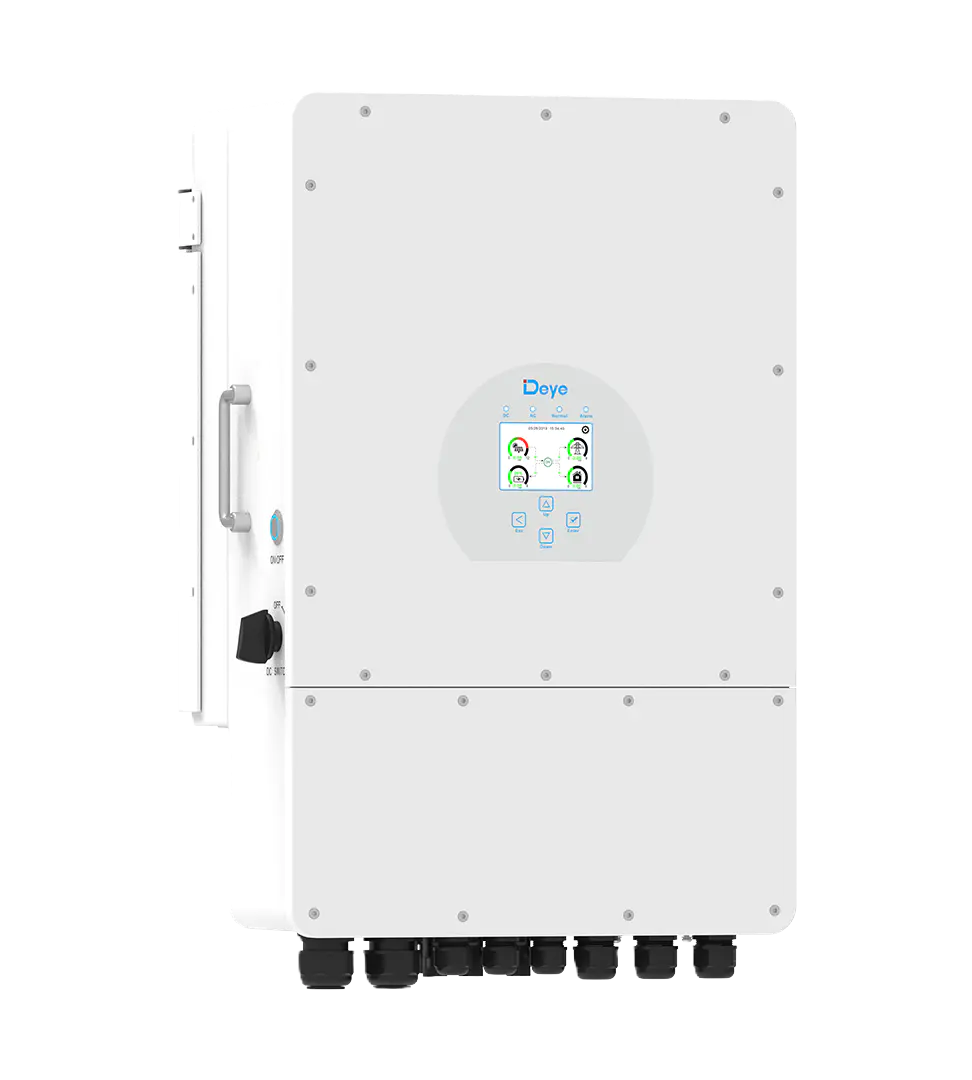

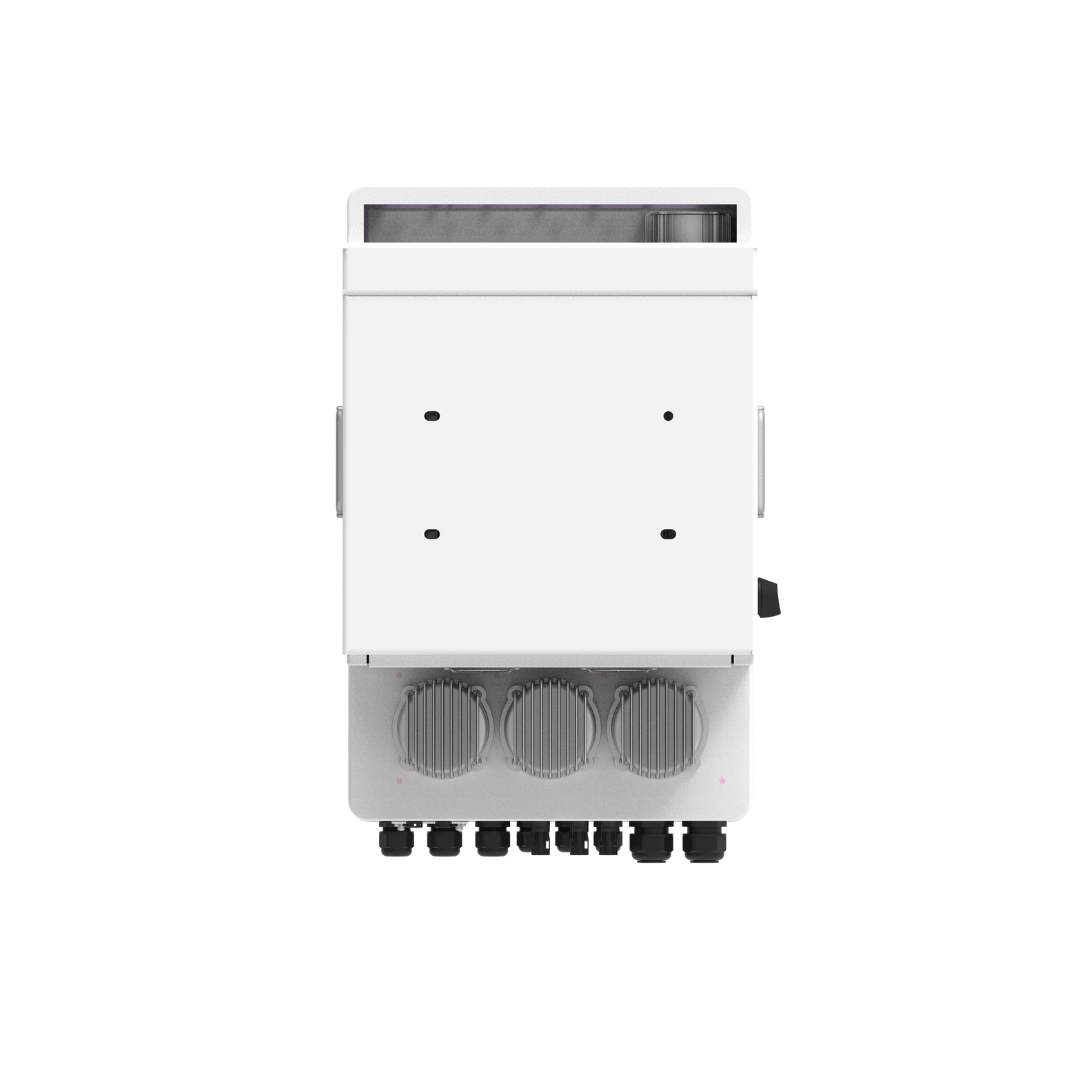

The DEYE 12kW Inverter (SG04LP3-E) is a powerful and reliable solar inverter designed for residential, commercial, and industrial applications. With advanced MPPT technology and a high efficiency rating, this inverter optimizes solar energy conversion for maximum performance.
Equipped with a high PV input power of 18,000W and a peak power capacity of 24,000W, the DEYE 12kW inverter ensures uninterrupted energy supply. It features dual MPPT trackers, enabling efficient solar energy harvesting from multiple sources. The IP66-rated enclosure offers superior protection against dust, water, and harsh weather conditions, ensuring long-lasting durability.
This inverter supports up to 240A AC charging, allowing rapid battery replenishment for off-grid and hybrid systems. The wide MPPT voltage range of 200-650V ensures optimal energy conversion, even in low-light conditions. Additionally, the five-year warranty provides peace of mind and long-term reliability.
Key Features of the DEYE 12kW Inverter:
- High 12kW Power Output: Ideal for residential, commercial, and industrial solar systems.
- Advanced MPPT Technology: Maximizes solar power conversion for greater energy efficiency.
- Dual MPPT Trackers: Supports multiple solar inputs for higher performance.
- Peak Power of 24,000W: Handles high surge loads efficiently for short bursts.
- IP66-Rated Protection: Ensures durability against dust, water, and harsh environmental conditions.
- Wide MPPT Voltage Range (200-650V): Enables consistent power generation, even in variable sunlight.
- Max PV Input Power (18,000W): Allows higher solar array capacity for improved energy storage.
- Max AC Charging Current (240A): Supports fast battery charging, ensuring quick energy recovery.
- Five-Year Warranty: Guarantees long-term performance and reliability.
Technical Specifications:
| Feature | Details |
|---|---|
| Model | SG04LP3-EU |
| Battery Voltage | 40-60V |
| Max AC Charging Current | 240A |
| Max PV Input Power | 18,000W |
| Max PV Access Power | 24,000W |
| Max PV Input Voltage | 800V |
| Max PV Operating Current | 26+13A |
| Max Short-Circuit Current | 34+17A |
| Start-Up Voltage | 160V |
| MPPT Voltage Range | 200-650V |
| Peak Power | 24,000W (for 10s Max) |
| Number of MPPT Trackers | 2 (2 strings for Tracker 1 + 1 string for Tracker 2) |
| Enclosure Rating | IP66 (Dust & Water Resistant) |
| Warranty | 5 Years |
