Description

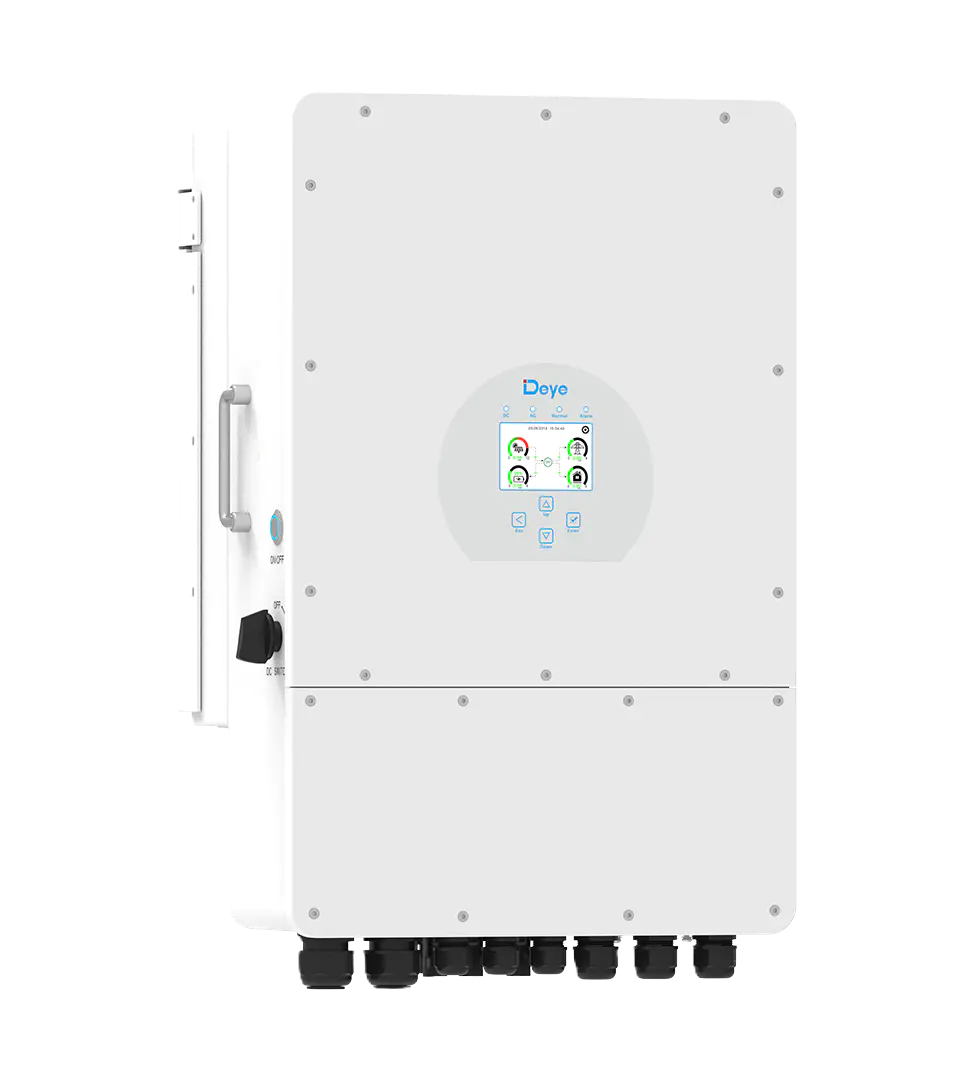

The DEYE 8kW Inverter (SG04LP3-EU) is a high-performance hybrid inverter designed for residential and commercial solar energy systems. It supports both lithium and lead-acid batteries, providing flexible energy storage solutions. With advanced MPPT technology, it optimizes solar power conversion, ensuring maximum energy efficiency.
This 8kW inverter delivers reliable power management, handling up to 16,000W peak AC power for 10 seconds. It also supports high PV input power, making it ideal for large solar installations. The IP66-rated enclosure ensures water and dust resistance, guaranteeing durability in extreme weather conditions.
Thanks to its high AC charging and discharging capabilities (190A max), this inverter efficiently manages battery power, reducing dependence on the grid. Its dual MPPT trackers enhance solar energy capture, increasing overall system efficiency.
Key Features of the DEYE 8kW Inverter:
- 8kW Hybrid Inverter: Handles high energy demands with seamless power management.
- Battery Compatibility: Works with both lithium and lead-acid batteries for versatile energy storage.
- Advanced MPPT Technology: Optimizes solar energy conversion with a wide MPPT voltage range (200V-650V).
- High PV Input Power: Supports up to 12,000W input, maximizing solar energy usage.
- Peak AC Power: Provides 16,000W surge power for up to 10 seconds, ensuring stable operation.
- Fast Charging & Discharging: Manages battery energy efficiently with 190A max AC charging and discharging.
- IP66 Weatherproof Rating: Built for harsh outdoor conditions, ensuring long-lasting durability.
- Dual MPPT Trackers: Enhances solar harvesting efficiency with separate tracking for different arrays.
- 5-Year Warranty: Provides peace of mind and long-term reliability.
Technical Specifications:
| Feature | Details |
|---|---|
| Model | SG04LP3-EU |
| Power Output | 8kW |
| Battery Voltage | 40-60V |
| Battery Compatibility | Lithium & Lead Acid |
| Max AC Charging Current | 190A |
| Max AC Discharging Current | 190A |
| Max PV Input Power | 12,000W |
| Max PV Access Power | 16,000W |
| Max PV Input Voltage | 800V |
| Max MPPT Operating Range | 200-650V |
| Start-Up Voltage | 160V |
| AC Peak Power (10s Max) | 16,000W |
| MPPT Trackers | 2 (1 string per tracker) |
| Max Input Short Circuit Current | 17A + 17A |
| IP Rating | IP66 (Dust & Water Resistant) |
| Warranty | 5 Years |
