Description

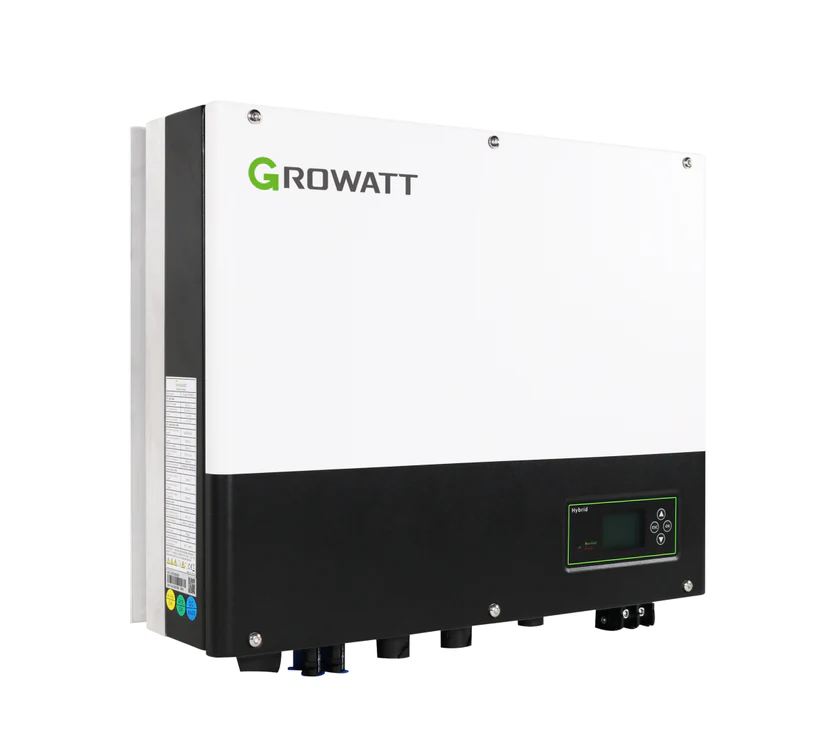

The Growatt 5kW – 48V (SPH 5000TL-BL-UP) Hybrid Inverter is a next-generation energy solution built for residential and small commercial setups. With a maximum PV power input of 9500Wp, this hybrid inverter ensures optimal energy generation from your solar panels. Its dual MPPT system boosts efficiency by tracking power from two solar arrays independently.
This inverter supports a DC/AC ratio of 1.5, allowing more solar panel capacity than the inverter’s rated output. Therefore, you enjoy maximum utilization during peak hours. The MPPT operating range of 120VDC to 550VDC (with a nominal of 370V) ensures flexibility with different panel configurations.
It also features UPS functionality with a fast transfer time of less than 10 milliseconds, making it ideal for sensitive appliances. In the event of power failure, it instantly switches to battery backup without interruption.
Another powerful benefit is its smart load management via dry contact, which lets you prioritize critical loads and reduce energy waste. You can also connect up to six units in parallel, perfect for growing power demands. Additionally, ShineWiFi-X support enables real-time remote monitoring, giving you control from anywhere.
Key Benefits of Growatt 5kW Hybrid Inverter
-
Seamless Backup Power: UPS function provides instant switch to battery power for uninterrupted electricity.
-
Remote Monitoring Included: Comes with ShineWiFi-X for live data tracking and smart control via mobile or web.
-
Advanced Load Management: Automatically prioritizes important devices to maximize solar usage and save energy.
-
Flexible System Expansion: Parallel capability of up to 6 units offers scalable system growth as your needs increase.
-
Indoor & Outdoor Use: Durable IP65 rating makes it suitable for both indoor and outdoor installation.
-
Complete Protection System: Features overcurrent, short-circuit, surge, reverse polarity, and insulation monitoring for safety.
Key Features
| Feature | Specification |
|---|---|
| Model | SPH 5000TL-BL-UP |
| Rated Output Power | 5kW |
| Max PV Power Input | 9500Wp |
| MPPT | Dual MPPT |
| DC/AC Ratio | 1.5 |
| Max PV Input Current | 13.5A (Isc 16.9A) |
| MPPT Voltage Range | 120VDC – 550VDC / Nominal: 370VDC |
| Max PV Array Open Circuit | 500VDC |
| Max Output Current | 22A |
| Charge/Discharge Current | 85A |
| UPS Transfer Time | <10 milliseconds |
| Parallel Support | Up to 6 Units |
| Smart Load Management | Via Dry Contact |
| Monitoring | ShineWiFi-X (Included) |
| Inbuilt Protections | AC/DC surge, DC switch, reverse polarity, anti-islanding |
| IP Rating | IP65 (Indoor/Outdoor) |
| Warranty | 60 Months (5 Years) |
