Description

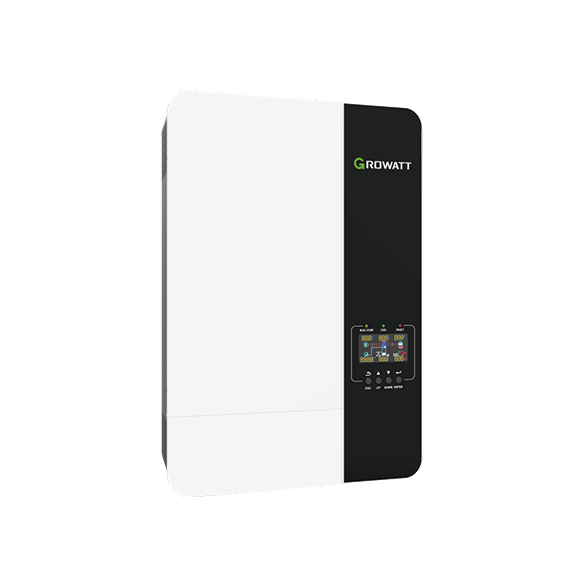

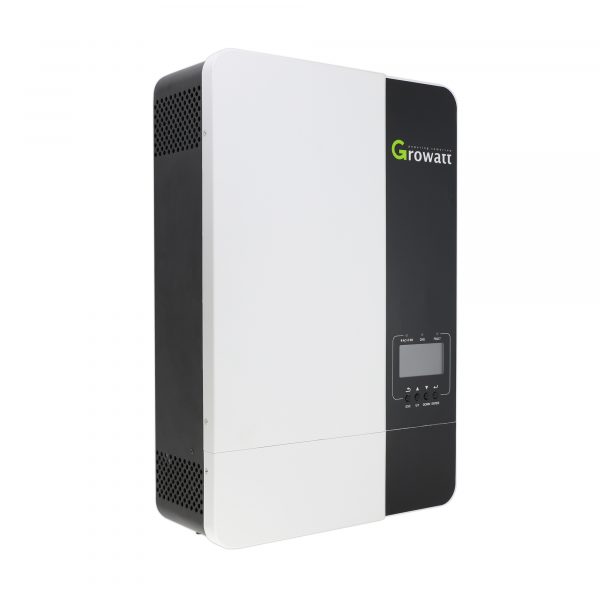

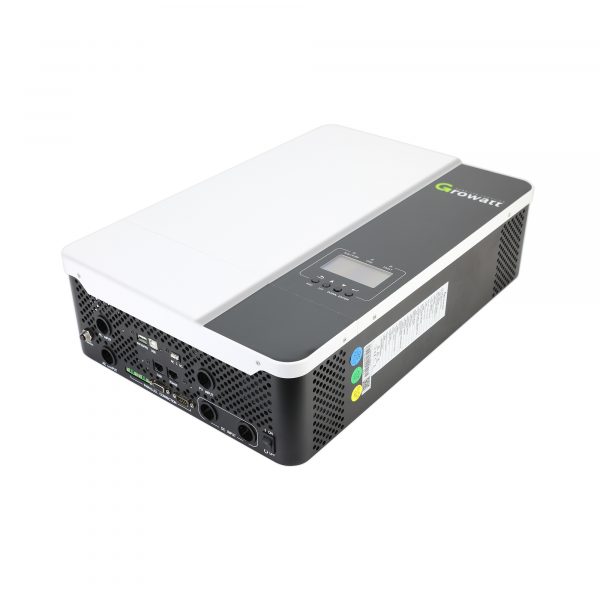

The Growatt 5kW-48Vdc Hybrid Inverter (SPF 5000 ES) is a powerful, wall-mounted high-frequency hybrid inverter built for modern solar systems. It is engineered to deliver reliable performance, maximize solar output, and provide flexibility for both home and commercial applications. With its advanced features and parallel compatibility, it ensures long-term efficiency and smooth energy management.
This inverter supports a 6000W maximum PV power capacity and operates with a wide 120VDC – 430VDC MPPT range. Its 22A PV input current and 100A solar charge current allow optimal solar energy conversion even under changing weather conditions. In addition, it provides an 80A maximum AC charge current, ensuring fast and dependable charging.
For seamless system expansion, the Growatt 5kW-48Vdc Hybrid Inverter (SPF 5000 ES) can be connected in parallel with up to six units, enabling a combined output of 30kW. This scalability makes it ideal for small to medium-scale energy projects.
Moreover, it comes with a WIFI-F dongle, enabling remote monitoring and smart energy management from anywhere. This ensures users can track performance, system health, and energy usage in real time. Safety is also prioritized with IP20 indoor protection and a 24-month warranty for peace of mind.
Key Features of Growatt 5kW-48Vdc Hybrid Inverter
Efficient Solar Energy Conversion
-
6000W Maximum PV Power: Handles high solar panel capacity for efficient energy generation.
-
22A Max PV Input Current: Supports large panel strings and ensures strong current handling.
-
Wide MPPT Range (120VDC – 430VDC): Captures maximum energy even with fluctuating sunlight.
Flexible Charging Options
-
100A Solar Charge Current: Maximizes battery charging efficiency.
-
80A Maximum AC Charge Current: Ensures faster grid charging when required.
Scalable Power Solution
-
Parallel Compatibility: Connect up to 6 units for 30kW total output.
-
Hybrid System: Works effectively with both solar and grid input.
Smart Monitoring and Control
-
WIFI-F Dongle Included: Remote monitoring through mobile apps and online platforms.
-
Real-Time Insights: Track energy flow and system performance anywhere, anytime.
Durability and Warranty
-
IP20 Indoor Use Only: Reliable for protected indoor installations.
-
24-Month Warranty: Provides user confidence and manufacturer assurance.
Technical Specifications
| Feature | Details |
|---|---|
| Model | Growatt SPF 5000 ES |
| Rated Power | 5kW (48Vdc) |
| Maximum PV Power | 6000W |
| Max PV Input Current | 22A |
| Max PV Array Voltage | 450VDC |
| MPPT Operating Range | 120VDC – 430VDC |
| Solar Charge Current | 100A |
| Max AC Charge Current | 80A |
| Parallel Operation | Up to 6 units (30kW total) |
| Monitoring | WIFI-F Dongle Inclusive |
| Protection Class | IP20 (Indoor use only) |
| Warranty | 24 Months |
