Description

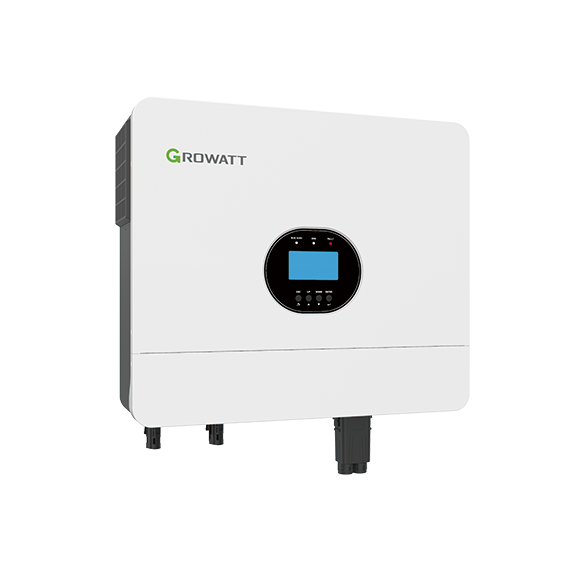

The Growatt 6kW-48Vdc (SPF 6000 ES PLUS) hybrid inverter is designed for efficiency, reliability, and advanced solar energy management. It is a wall-mount, high-frequency hybrid inverter built for indoor use, providing flexibility and intelligent power conversion.
This inverter supports a maximum PV input of 8000W with dual MPPT input of 4000W each, ensuring maximum solar harvesting even in challenging conditions. Its wide MPPT operating range of 120VDC to 450VDC guarantees flexibility for various solar array configurations. In addition, the maximum PV array open circuit voltage of 500VDC adds robust design capacity.
With a solar charge current of 100A and maximum AC charge current of 80A, it efficiently manages both solar and grid charging. The system also includes parallel compatibility of up to 6 units, allowing expansion to an impressive 36kW output when needed.
Moreover, the Wifi-F dongle is included for remote monitoring, enabling you to track performance and adjust settings with ease. Its protection rating of IP20 makes it ideal for indoor installations, while the 24-month warranty ensures peace of mind and lasting performance.
Reliable Hybrid Solar Inverter
-
8000W Maximum PV Power: Supports dual MPPT input with 4000W per tracker for better energy harvest.
-
Flexible MPPT Range: Wide 120VDC – 450VDC operating range for various solar configurations.
-
Efficient Charging: 100A solar charge current and 80A AC charge current for reliable system performance.
-
Expandable Power: Parallel up to 6 units for 36kW capacity.
-
Remote Monitoring: Wifi-F dongle included for performance tracking and control.
-
Strong Protection: Built with multiple safeguards and IP20 indoor safety standard.
-
Durable Warranty: Covered by a 24-month warranty for extra reliability.
Technical Specifications of Growatt SPF 6000 ES PLUS
| Feature | Details |
|---|---|
| Model | Growatt SPF 6000 ES PLUS |
| Rated Power | 6kW-48Vdc |
| Mounting Type | Wall-mount, high-frequency hybrid inverter |
| Maximum PV Power | 8000W (4000W per MPPT input) |
| Max PV Input Current | 16A |
| Solar Charge Current | 100A |
| Max PV Array Voltage | 500VDC |
| MPPT Operating Range | 120VDC – 450VDC |
| AC Charge Current | 80A |
| Remote Monitoring | Wifi-F dongle inclusive |
| Parallel Capability | Up to 6 units (36kW total) |
| Protection Rating | IP20 (indoor use only) |
| Warranty | 24 months |
