Description

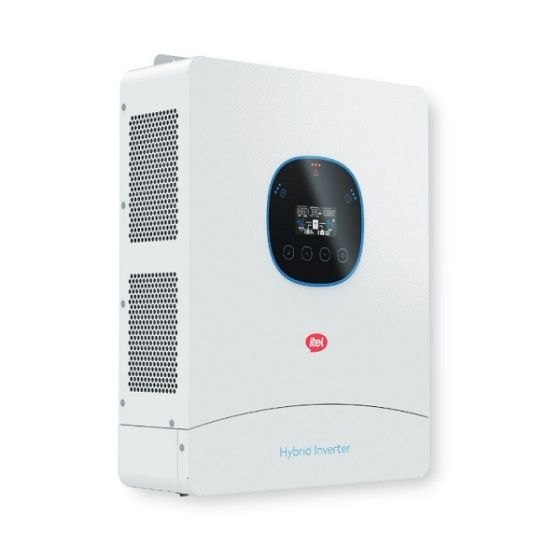

The ITEL 4kW-24V Hybrid Inverter (IP54) is a high-performance solution designed to optimize solar energy efficiency. With a maximum 4000W PV input power, this hybrid inverter is ideal for both residential and commercial applications. Whether used indoors or outdoors, it’s built to withstand various environmental conditions with an IP54 rating, ensuring dust and water resistance.
This inverter supports 15A max PV input current (with all panels in series), 120A maximum solar charge current, and has an 85VDC – 450VDC MPPT operating range. Its 500VDC max PV array open circuit allows for seamless energy conversion from solar power. Additionally, it offers a 28A maximum AC charge current to ensure your system operates at peak performance.
Designed for high reliability, this inverter supports a 3HP motor load capacity. However, it’s important to note that this inverter does not support parallel compatibility. The unit comes with a 30-month warranty to ensure long-term durability.
With its robust design and advanced features, the ITEL 4kW-24V Hybrid Inverter is a top choice for optimizing solar power systems.
Technical Specifications:
| Specification | Details |
|---|---|
| Max PV Power | 4000 Watts |
| Max PV Input Current | 15A (All panels in series) |
| Max Solar Charge Current | 120A |
| Max PV Array Open Circuit Voltage | 500VDC |
| MPPT Operating Range | 85VDC – 450VDC |
| Max AC Charge Current | 28A |
| Motor Load Capacity | 3HP |
| Parallel Compatibility | Not Supported |
| IP Rating | IP54 (Indoor and Outdoor Use) |
| Warranty | 30 Months |
ITEL 4kW Hybrid Inverter Key Features:
- High Power Output: Maximum 4000W PV power capacity for reliable solar energy generation.
- Water and Dust Resistance: IP54 rating for use in both indoor and outdoor environments.
- Advanced MPPT Technology: MPPT operating range from 85VDC to 450VDC for efficient energy conversion.
- High Solar Charge Current: Supports up to 120A maximum solar charge current for better performance.
- Motor Load Support: Can handle a motor load capacity of 3HP, making it versatile for various applications.
Benefits:
- Reliable Solar Power Supply: Provides consistent energy for both residential and commercial systems, even in harsh conditions.
- Efficient Energy Conversion: MPPT technology maximizes the energy conversion from solar power to AC power.
- Durable Design: The IP54 rating ensures the inverter is protected from dust and water, making it suitable for both indoor and outdoor installations.
- High Performance: With a 3HP motor capacity, it can support demanding equipment, ensuring stability.
- Warranty Coverage: A 30-month warranty offers added peace of mind, ensuring the longevity of your investment.
