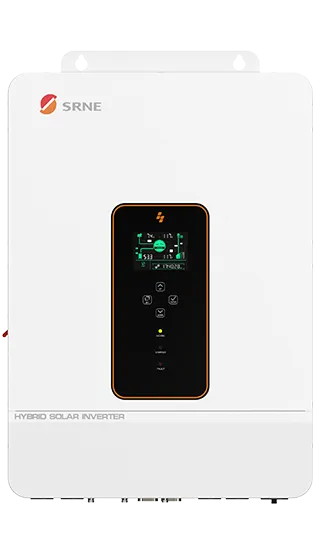

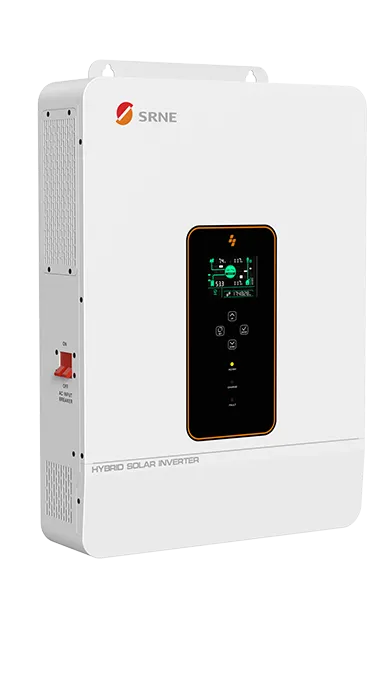

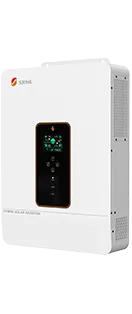

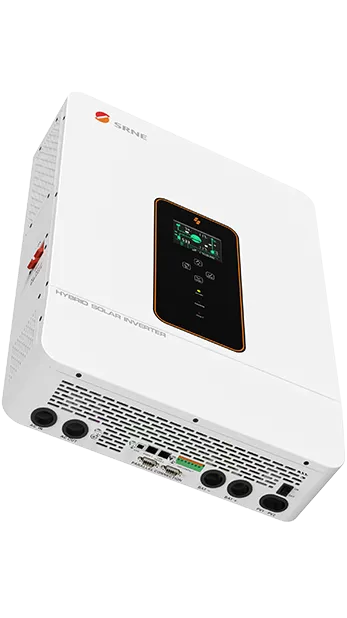

6.2kW-48V SRNE Hybrid Inverter (HESP4860S100-H)
- (HESP4860S100-H)
- 9000Watts Maximum PV Power Dual MPPT Input, 4500Wp Per MPPT
- Max PV input current (16A+16A)
- 12,400Watts Surge Power
- 100A Max PV Charge current
- 500VDC Maximum PV Array Open Circuit
- 120VDC – 450VDC MPPT Operating range
- 80A Maximum AC charge current
- 5HP Capacity
- Up to 6units in Parrallel
- (IP65 Indoor and outdoor use – 60 months warranty)
₦1,180,000.00
Out of stock
Description
The 6.2kW-48V SRNE (HESP4860S100-H) hybrid inverter delivers high-performance energy conversion for both residential and commercial applications. It combines efficiency, durability, and smart functionality to ensure a stable power supply in various environments.
With a maximum PV power of 9000W and dual MPPT input (4500Wp per MPPT), this inverter ensures optimal solar energy harvesting even in mixed sunlight conditions. The maximum PV input current of 16A+16A allows compatibility with high-output solar panels for greater system flexibility.
Its 12,400W surge power capacity provides extra performance during sudden load spikes, while the 100A maximum PV charge current ensures fast battery charging. The wide MPPT operating range of 120VDC – 450VDC optimizes performance across different weather conditions.
Built with durability in mind, the SRNE 6.2kW hybrid inverter features IP65 protection, making it suitable for both indoor and outdoor installations. It can be connected in parallel with up to six units, allowing for system expansion to meet future power demands.
Additionally, the 80A maximum AC charge current supports fast charging from the grid when needed, ensuring your batteries are always ready. This inverter also offers 5HP capacity for powering larger motors and appliances.
Backed by a 60-month warranty, it provides peace of mind along with powerful performance.
Key Features of 6.2kW SRNE Hybrid Inverter
-
High Solar Input: 9000W maximum PV power for greater energy production.
-
Dual MPPT Technology: 4500Wp per MPPT for efficient solar harvesting in varying sunlight conditions.
-
Strong Surge Capability: 12,400W surge power for handling sudden load demands.
-
Fast Battery Charging: 100A PV charge current and 80A AC charge current for quick energy storage.
-
Wide Voltage Range: 120VDC – 450VDC MPPT operating range for optimal performance.
-
Parallel Operation: Connect up to 6 units for increased power capacity.
-
Indoor & Outdoor Use: IP65 protection for versatile installation options.
-
Motor-Friendly Power: 5HP capacity to run heavy appliances or machinery.
-
Reliable Warranty: 60-month coverage for long-term peace of mind.
Technical Specifications
| Feature | Details |
|---|---|
| Model | HESP4860S100-H |
| Rated Power | 6.2kW |
| Maximum PV Power | 9000W |
| MPPT Inputs | Dual (4500Wp per MPPT) |
| Max PV Input Current | 16A + 16A |
| Surge Power | 12,400W |
| Max PV Charge Current | 100A |
| Max AC Charge Current | 80A |
| Max PV Array Voltage | 500VDC |
| MPPT Operating Range | 120VDC – 450VDC |
| Horsepower Capacity | 5HP |
| Parallel Operation | Up to 6 units |
| Protection Rating | IP65 (Indoor & Outdoor) |
| Warranty | 60 Months |
