1.5hp SODIBOHR Solar DC Submersible Water Pump
- 1100Watts (3DSD6-101-150-1100)
- Power: 1100W;
- Max. Flow(m³/h): 6.0 m³/h
- Max.Head: 101m
- Outlet(in): 1.5″
- ADS:45,000 Liters /day, Panel Voc < 430volt
- DC Brushless Copper Wire
- 1 year warranty
PV Connection and Capacity: 3unit of 615Wp Solar Panel
(Includes pump and controller)
₦500,000.00
Out of stock
Description
The 1.5hp SODIBOHR Solar DC Submersible Water Pump is a powerful and energy-efficient solution for farms, boreholes, and off-grid water needs. Powered by solar energy, this system offers a sustainable way to pump water without relying on fuel or the electric grid. It is ideal for remote areas, agricultural irrigation, livestock watering, and domestic water supply.
With 1100W power, it delivers a maximum flow rate of 6.0 m³/h and reaches a head height of up to 101 meters. This makes it highly effective for deep well and borehole applications. Its 1.5″ outlet size ensures a smooth and fast discharge of water, helping you save time and effort.

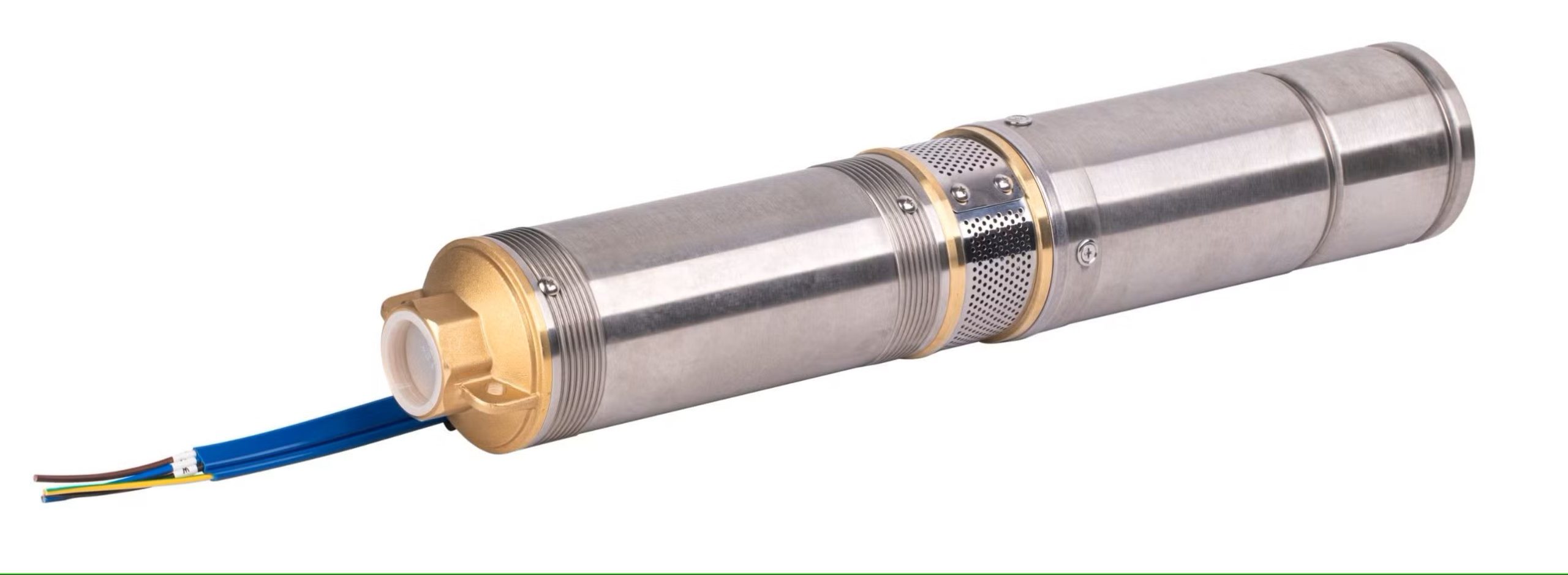

The pump uses a DC brushless motor with copper wiring, ensuring durability, long life, and low maintenance. It also includes a smart controller for smooth operation and protection. The system works with 3 units of 615Wp solar panels, making installation simple and efficient.
Moreover, the pump is designed to deliver up to 45,000 liters of water per day, which is perfect for high-demand users. Backed by a 1-year warranty, it offers peace of mind and long-term performance.
Key Features of This Solar DC Submersible Water Pump
-
High Pumping Power: 1100W system delivers a maximum head of 101 meters and flow of 6.0 m³/h.
-
Large Daily Output: Supplies up to 45,000 liters of water per day, ideal for farming and commercial use.
-
Brushless DC Motor: Copper wire motor ensures longer lifespan, lower energy loss, and better heat resistance.
-

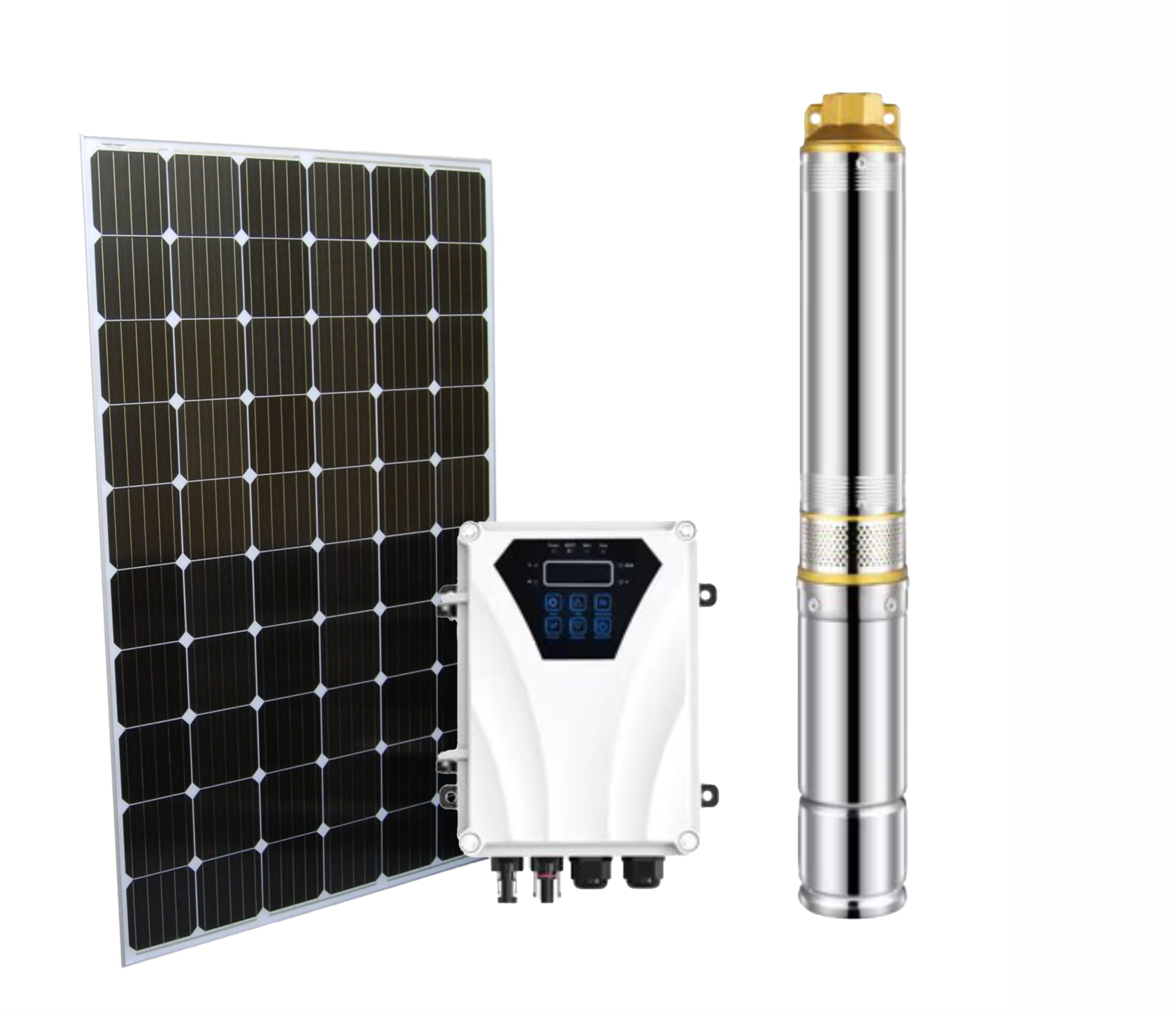

Wide PV Compatibility: Operates efficiently with 3 units of 615Wp solar panels, saving energy costs.
-

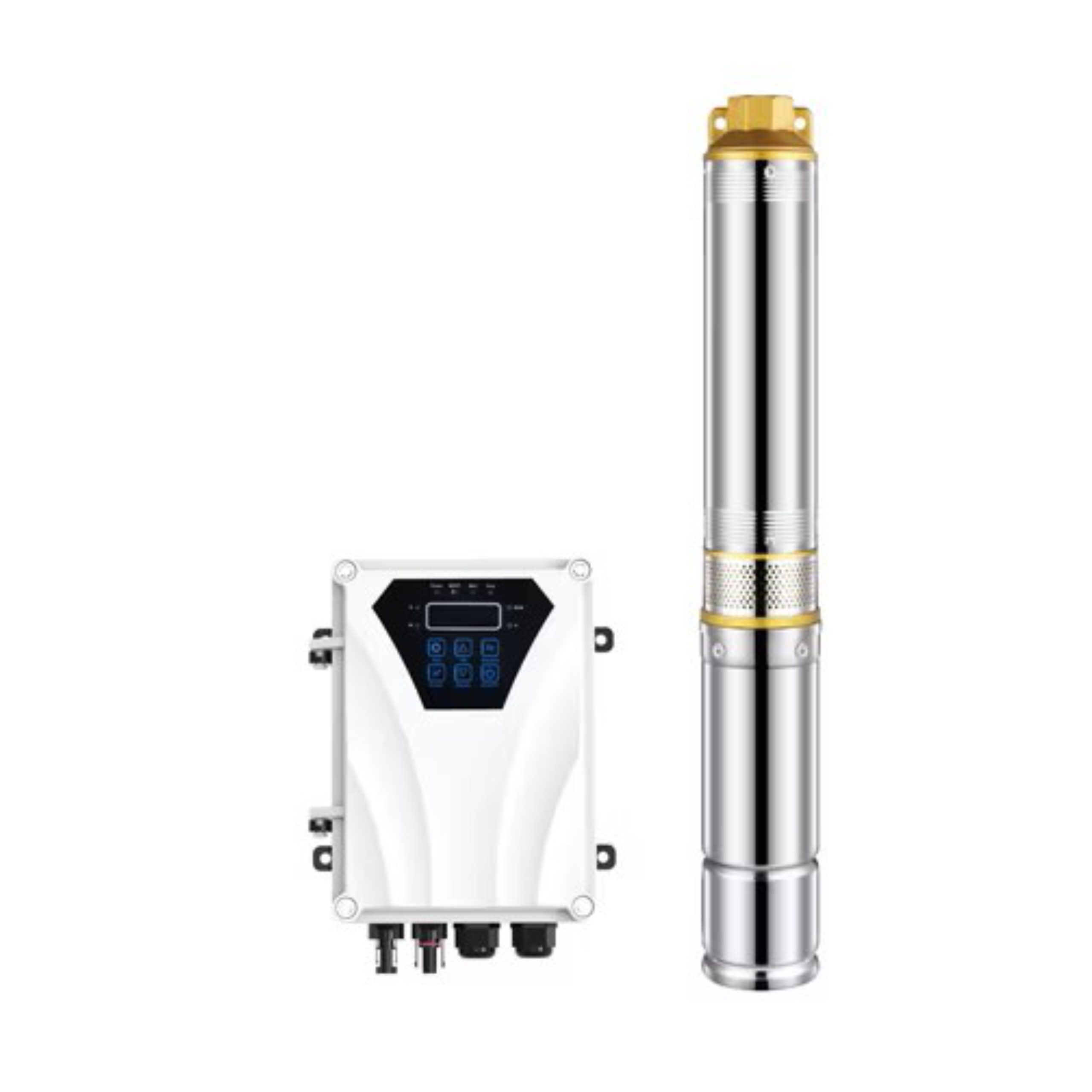

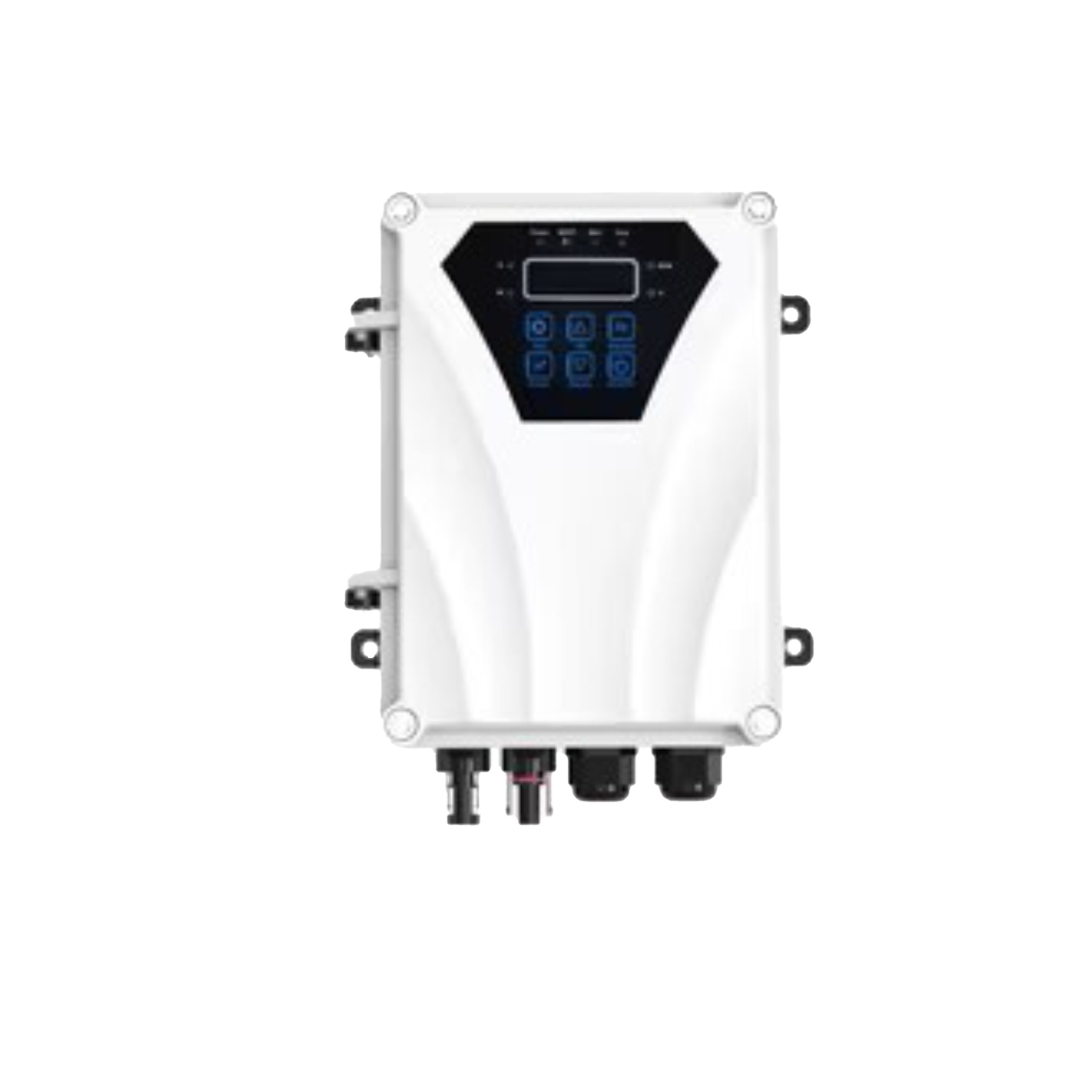

Integrated Controller: Comes with a controller unit that protects the pump and improves its performance.
-
Rugged & Reliable: Designed for deep well and borehole applications in tough environments.
-
Eco-Friendly Operation: No fuel, no noise, and zero emissions – just clean and renewable solar energy.
-
1-Year Warranty: Offers assured protection and after-sales support.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | 3DSD6-101-150-1100 |
| Power | 1100 Watts |
| Max Flow | 6.0 m³/h |
| Max Head | 101 meters |
| Outlet Size | 1.5 inches |
| Daily Supply (ADS) | 45,000 Liters |
| Motor Type | DC Brushless, Copper Wire |
| Solar Panel Connection | 3 units of 615Wp |
| Panel Voc Requirement | Less than 430V |
| Included Accessories | Pump and Controller |
| Warranty | 1 Year |
