Description

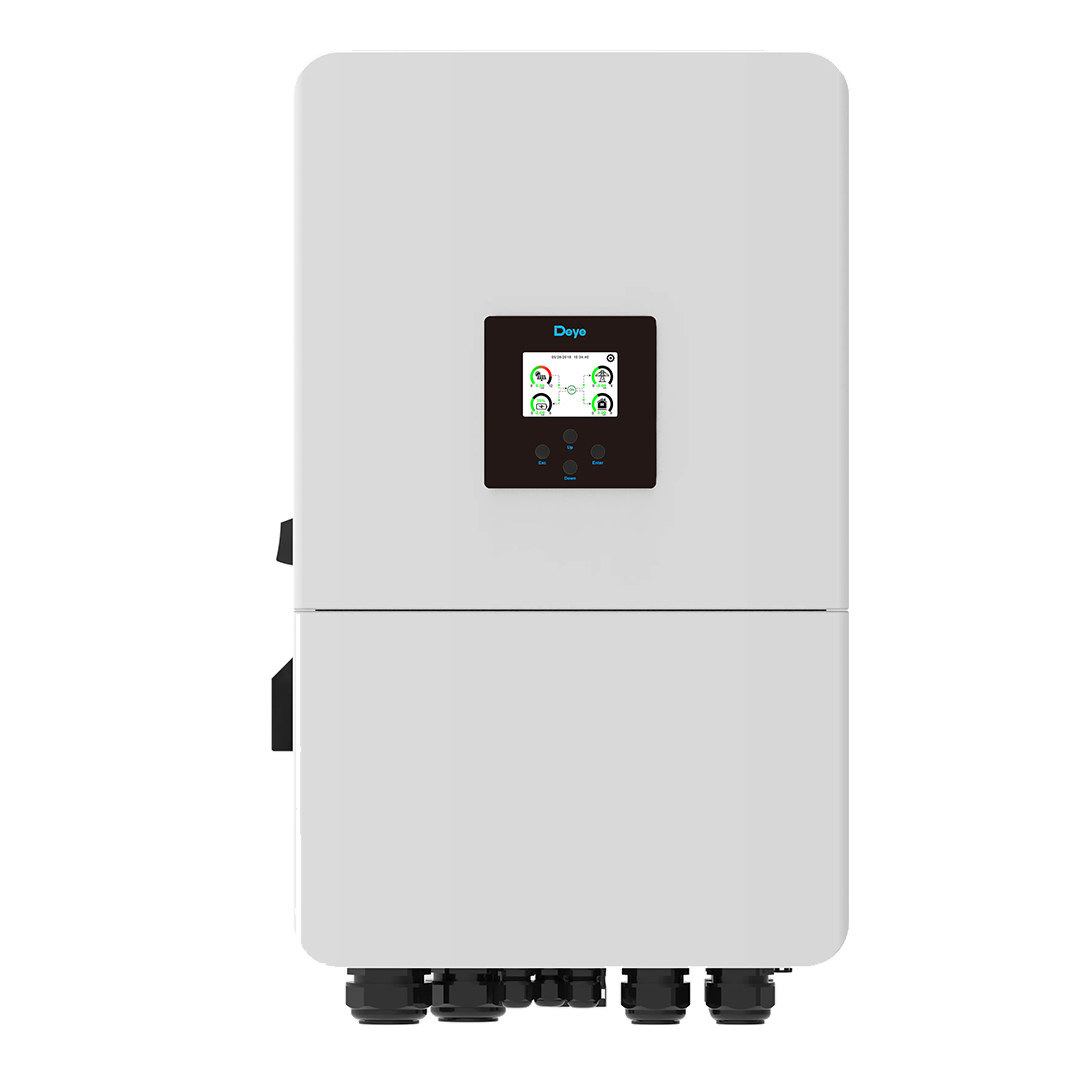

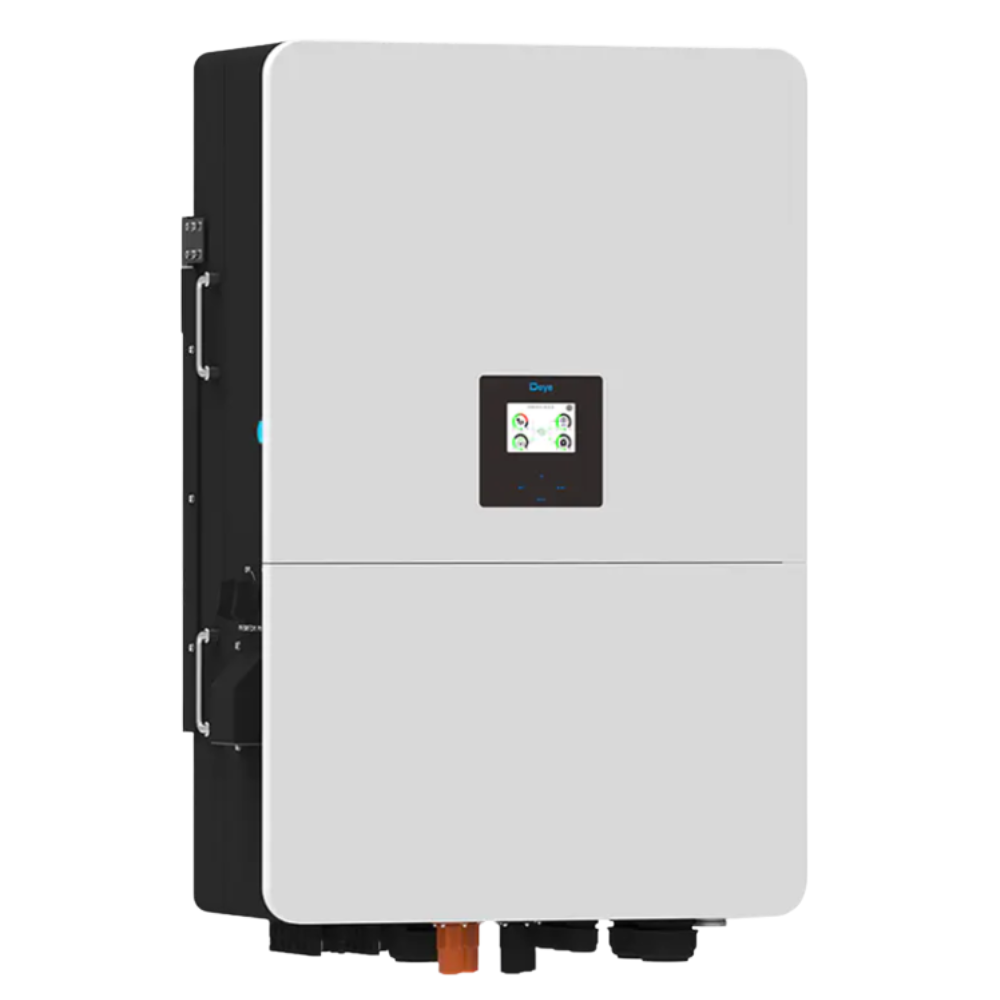

The 80KW Deye Inverter is built for high-capacity solar and hybrid energy installations.
It delivers stable three-phase power for commercial and industrial energy demands.
Moreover, this inverter supports both lithium and lead-acid battery technologies seamlessly.
As a result, system flexibility increases across different energy storage setups.
With advanced power handling, it supports heavy loads without performance drops.
Therefore, businesses enjoy uninterrupted and reliable energy supply daily.
The 80KW Deye Inverter supports parallel operation for scalable energy expansion.
Consequently, future upgrades become easier and more cost-effective.
Why Choose the 80KW Deye Inverter
This inverter supports extremely high PV access capacity efficiently.
Additionally, it handles multiple MPPT channels for optimized solar harvesting.
Its intelligent battery charging adapts automatically to BMS communication.
As a result, battery lifespan and safety are significantly improved.
Furthermore, it supports both on-grid and off-grid operations smoothly.
Therefore, it suits diverse energy application environments perfectly.
Key Benefits of the 80KW Deye Inverter
-
Supports lithium and lead-acid batteries with wide voltage compatibility.
-
Handles high PV input power for large solar installations.
-
Enables parallel connection up to ten units for expansion.
-
Ensures reliable output during unbalanced load conditions.
-
Offers smart monitoring through multiple communication options.
-
Features strong IP65 protection for outdoor installations.
Performance and Reliability You Can Trust
The inverter delivers peak power up to 1.5 times rated capacity.
This feature ensures smooth startup for heavy electrical equipment.
Moreover, it maintains stable output under demanding operating conditions.
Therefore, system downtime is significantly reduced.
Its robust design ensures long-term performance in harsh environments.
Additionally, the five-year warranty guarantees peace of mind.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SG02HP3-E |
| Product Name | 80KW Deye Inverter |
| Battery Type | Lithium / Lead Acid |
| Battery Voltage Range | 160V – 1000V |
| Max DC Charging Current | 80A + 80A |
| Max DC Discharging Current | 80A + 80A |
| Charging Strategy | Self-adapting to BMS |
| Max PV Access Power | 160,000W |
| Max PV Input Power | 128,000W |
| Max PV Input Voltage | 1000V |
| Start-up Voltage | 180V |
| MPPT Voltage Range | 150V – 850V |
| Output Voltage | 220V/380V, 230V/400V |
| Output Phase | Three Phase |
| MPPT Trackers | 6 (2+2+2+2+2+2) |
| Max Operating PV Input Current | 36A × 6 |
| Max Input Short-Circuit Current | 54A × 6 |
| Peak Power | 1.5× Rated Power (10s) |
| Output Balance | 100% Unbalanced Supported |
| Communication | RS485 / RS232 / CAN |
| Monitoring Options | GPRS / WiFi / Bluetooth / 4G / LAN |
| Parallel Capability | Up to 10 Units |
| Protection Rating | IP65 |
| Warranty | 5 Years |
Ideal Applications
This inverter suits factories, estates, offices, and commercial facilities.
It also works perfectly for large solar farms and hybrid power systems.
